Product Details:
|

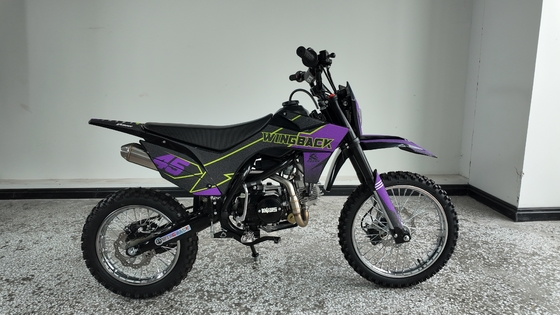

Highlight: | 125CC Pit Bike,4-Stroke Pit Bike,HB125 Engine Pit Bike |
---|
Specification | Details |
---|---|
Vehicle Type | Steel and alloy |
Engine Type | 4 stroke, air-cooling, camshaft upward |
Engine Model | HB125 |
Cylinder Arrangement | Single Cylinder |
Piston Displacement | 124ML |
Maximum Power | 5.8kW at 8000rpm |
Maximum Torque | 8.5N.m at 6000rpm |
Transmission System | Chain drive |
Ignition Type | C.D.I |
Starter System | Electric+Kick |
Transmission | 4 Speed, International |
Dimensions (L×W×H) | 1760×800×1090mm |
Wheel Base | 1235mm |
Seat Height | 780mm |
Ground Clearance | 300mm |
Dry Weight | 79kg |
Brake (Front/Rear) | Disk/Disk |
Tyre (Front) | 70/100-17(1.60-17) |
Tyre (Rear) | 90/100-14(1.85-14) |
Fuel Tank Capacity | 5L |
Max. Load Capacity | 100kg |
Max. Speed | 80km/h |
Battery | Gel (4A) |
Loading Capacity | 72 PCs /SKD/20GP or 192PCs/SKD/40HC |
